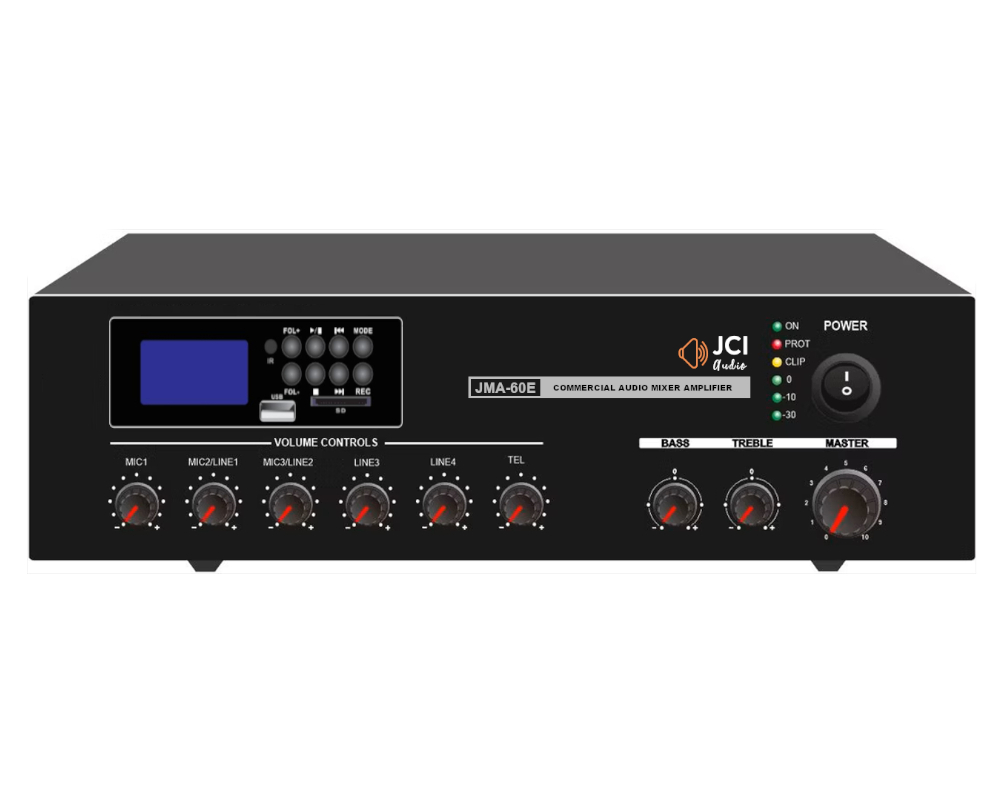

JMA-60E
Compact Mixer Amplifier with MP3 / FM / Bluetooth – 60W
Description
The JMA-60E is a compact professional mixer amplifier designed for classrooms, offices, retail spaces, and commercial audio installations. It features 70V/100V and low-impedance outputs, plus a multimedia module with Bluetooth, MP3 (USB/SD), and FM. Multiple mic and line inputs are provided, including a balanced Mic1 with phantom power and a telephone input with VOX priority. Independent volume controls, EQ, and built-in protection ensure stable performance. The unit operates on AC 220/115V or 24V DC for backup systems.
Key Features:
• Compact tabletop mixer amplifiers for commercial paging and BGM applications.
• Available in 30W, 60W, and 120W power ratings.
• Built-in 70V / 100V transformer with 4–16 Ω low-impedance output.
• Integrated MP3 player (USB/SD), FM radio, and Bluetooth streaming.
• Three microphone inputs: – Mic 1: balanced XLR with phantom power – Mic 2–3: unbalanced 6.3 mm jack (mic/line selectable)
• Two line inputs (RCA) and one line output (RCA).
• Telephone input with VOX priority and MOH (Music on Hold) function.
• Front-panel LED indicators: ON, PROT, CLIP, and a 3-level signal meter (0 / –10 / –30 dB).
• Front-panel controls: MIC1, MIC2/LINE1, MIC3/LINE2, LINE3, LINE4, TEL, BASS, TREBLE and MASTER.
• Full protection circuitry: short circuit, overload, clipping, high temperature.
• Dual-power capability: AC 230V / 115V or DC 24V.
Specifications:
| Model | JMA-30E | JMA-60E | JMA-120E |
|---|---|---|---|
| Description | Compact Commercial Audio Mixer Amplifier | ||
| Rated Power Output | 30 W | 60 W | 120 W |
| Speaker Output | 70V, 100V, 4–16 Ω | ||
| Inputs | Mic1 (XLR, phantom, 600 Ω / 5–8 mV); Mic2/Line1 & Mic3/Line2 (6.3 mm jack, mic/line selectable, 600 Ω / 5–8 mV); Line3–4 (RCA, 10 kΩ / 150–470 mV); Telephone input (TEL) with VOX priority + MOH. |
||
| Frequency Response | 60 Hz – 15 kHz | ||
| THD | <0.5% at 1 kHz, at 1/3 rated power | ||
| S/N Ratio | Line: >85 dB, Mic: >72 dB | ||
| Protection | High temperature, short circuit, overload | ||
| Power Supply | AC 230V / 115V or DC 24V, 50–60 Hz | ||
| Dimensions | 300 (W) × 275 (D) × 88 (H) mm | ||
| Power Consumption | 45 W | 100 W | 200 W |
| Gross Weight | 5.5 kg | 6.6 kg | 7.8 kg |
