JCS-610C

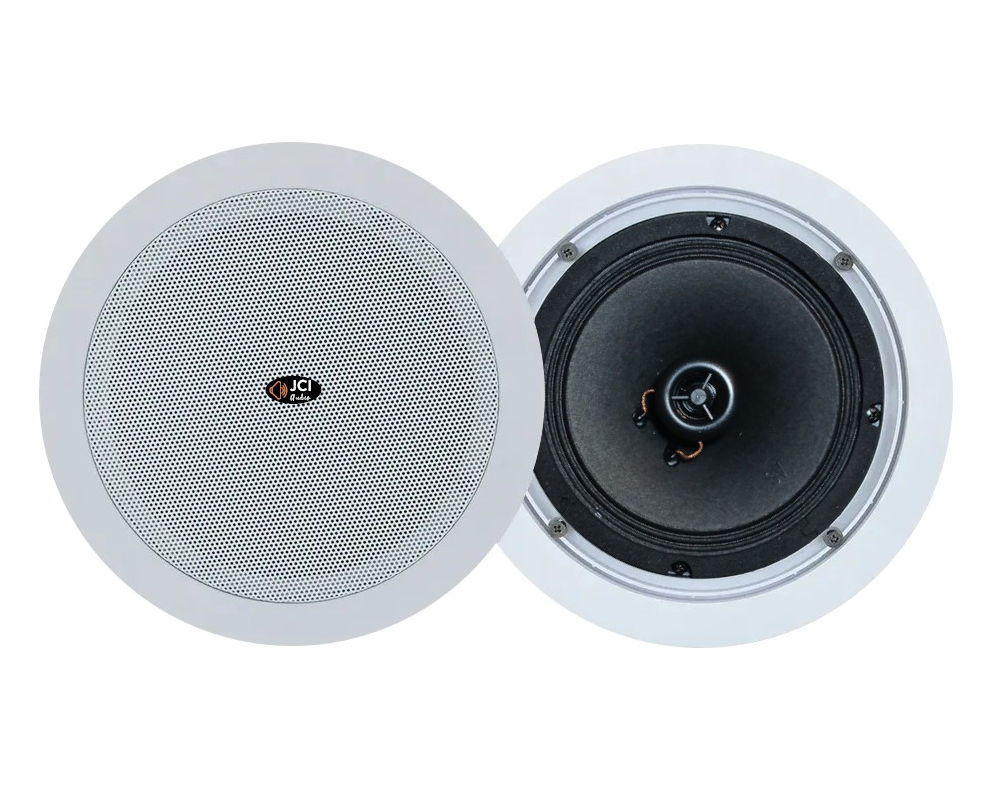

6″ Coaxial Ceiling Speaker with Line Transformer (3W / 6W / 10W)
Description
The JCS-610C is a 6-inch coaxial ceiling speaker designed for commercial sound systems requiring clear speech and smooth background music. Featuring a built-in 100V/70V line transformer with selectable power taps (3W / 6W / 10W), it combines a 6″ paper cone woofer with a 1.5″ tweeter for improved high-frequency response and even sound coverage. Its white metal grille and flush-mount design allow fast, discreet installation in offices, hotels, retail spaces, and public facilities.
Key Features:
• 6-inch coaxial ceiling speaker for commercial audio applications
• Integrated 100V / 70V line transformer with 3W / 6W / 10W power taps
• Coaxial driver design for clear speech and balanced background music
• 6″ paper cone woofer with 1.5″ tweeter for extended frequency response
• Durable ABS enclosure with white metal grille
• Flush-mount installation with four dog-ear clamps
• Ideal for offices, hotels, retail stores, restaurants, and public spaces
• Integrated 100V / 70V line transformer with 3W / 6W / 10W power taps
• Coaxial driver design for clear speech and balanced background music
• 6″ paper cone woofer with 1.5″ tweeter for extended frequency response
• Durable ABS enclosure with white metal grille
• Flush-mount installation with four dog-ear clamps
• Ideal for offices, hotels, retail stores, restaurants, and public spaces
Specifications:
| Model | JCS-610C |
|---|---|
| Description | 6" Coaxial Ceiling Speaker |
| Power Taps (100V) | 3W / 6W / 10W |
| Line Input | 100V or 70V |
| Speaker Unit | 6" paper cone coaxial woofer + 1.5" tweeter |
| Frequency Response | 110 Hz – 18 kHz |
| Sensitivity (1W/1m) | 93 dB |
| Cutout Size | Ø 195 mm |
| Dimensions | Ø 230 × 85 mm |
| Material | ABS enclosure, metal grille (white) |
| Mounting Method | Flush mount with 4 dog-ear clamps |
| Net Weight | 0.9 kg |
