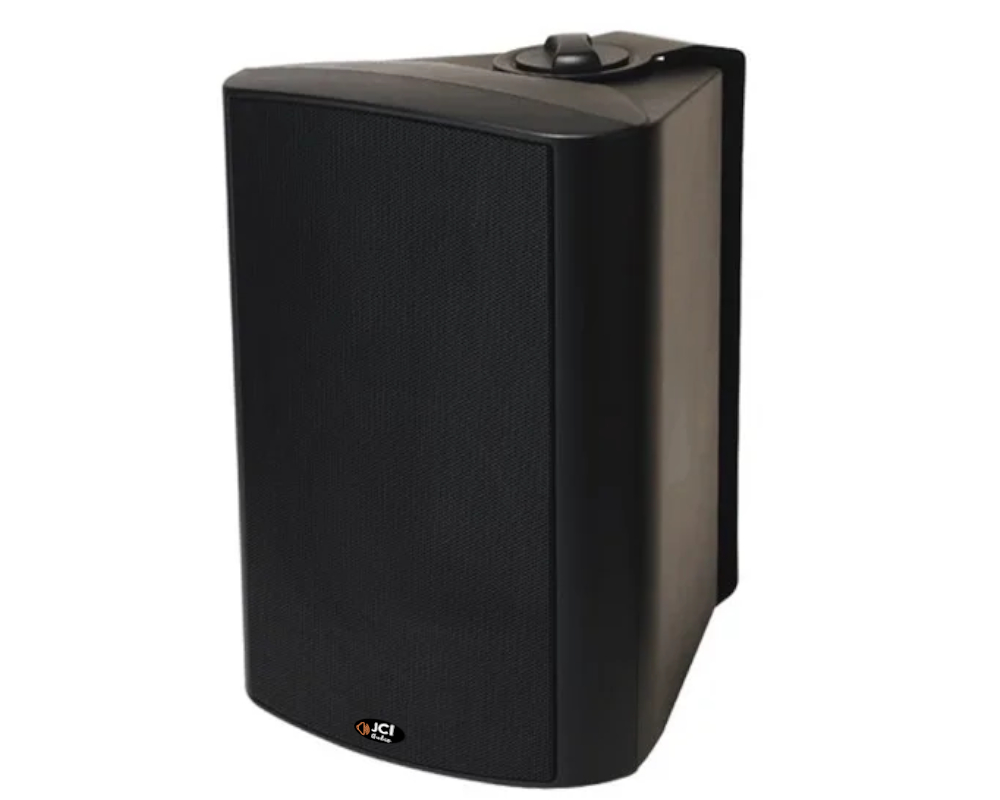

JWS-530
5″ Two-Way Wall-Mount Speaker 7.5W / 15W / 30W (100V line selectable)
Description
The JWS-530 is a compact two-way wall speaker designed for high-quality background music and clear voice announcements in commercial environments. With efficient full-range performance, wide dispersion, and a durable ABS enclosure, it delivers consistent, natural sound in offices, schools, restaurants, retail spaces, and other distributed audio installations. Its versatile 70/100V transformer with 8-ohm bypass ensures easy integration into new or existing PA systems.
Key Features:
• 5″ two-way wall-mount loudspeaker for commercial sound installations.
• Designed for background music and paging in offices, schools, hotels, and public facilities.
• Power selectable at 3.75 W / 7.5 W / 15 W / 30 W (100 V line).
• Built-in 70 V / 100 V transformer with 8 Ω bypass option.
• High-efficiency 5″ woofer and 1.5″ tweeter for clear, natural sound reproduction.
• Durable ABS enclosure with metal grille, finished in black or white.
• Easy and secure wall installation with stainless steel mounting bracket included.
Specifications:
| Model | JWS-530 (Black) / JWS-530W (White) |
|---|---|
| Description | 5″ Two Way Wall Mount Speaker |
| Rated Power Output | 3.75 W / 7.5 W / 15 W / 30 W (100 V line selectable) |
| Line Input | 100 V / 70 V line or 8 Ω low-impedance input |
| Frequency Response | 100 Hz – 20 kHz |
| SPL(@1W/m) | 92 dB SPL |
| Speaker Units | 5″ woofer + 1.5″ tweeter, two-way design |
| Dimensions (W × D × H) | 185 × 170 × 257 mm |
| Material | ABS enclosure with metal grille (white and black available) |
| Mounting | Stainless-steel wall bracket included for fast installation |
| Net Weight | 2.5 kg |
