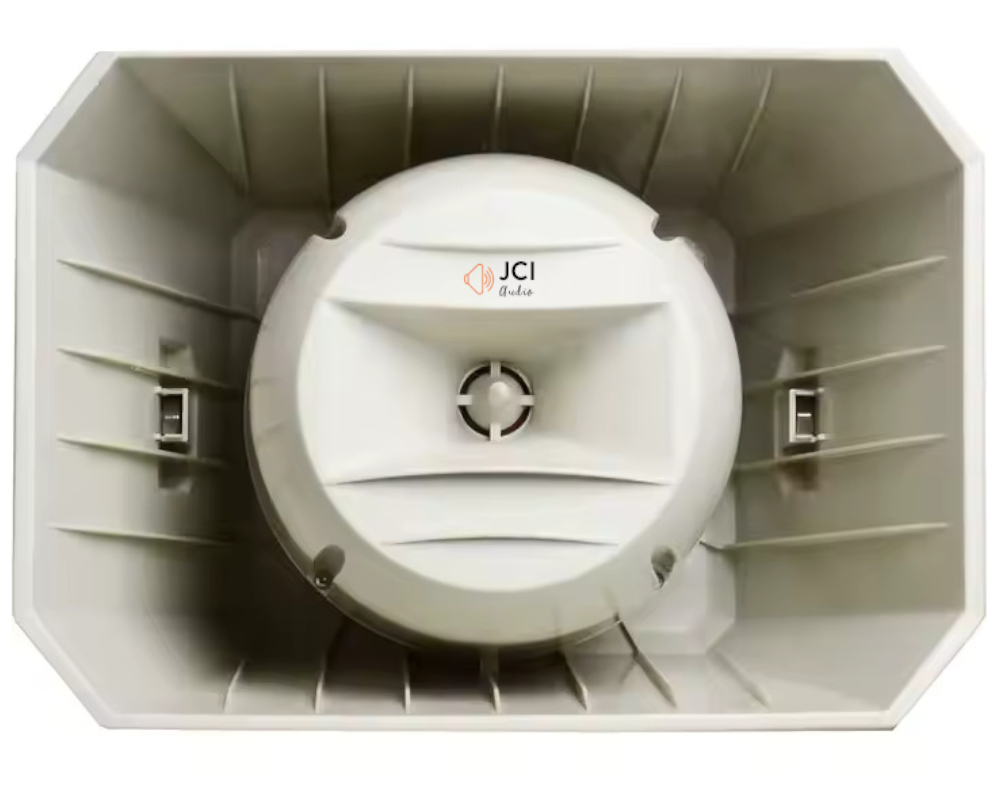

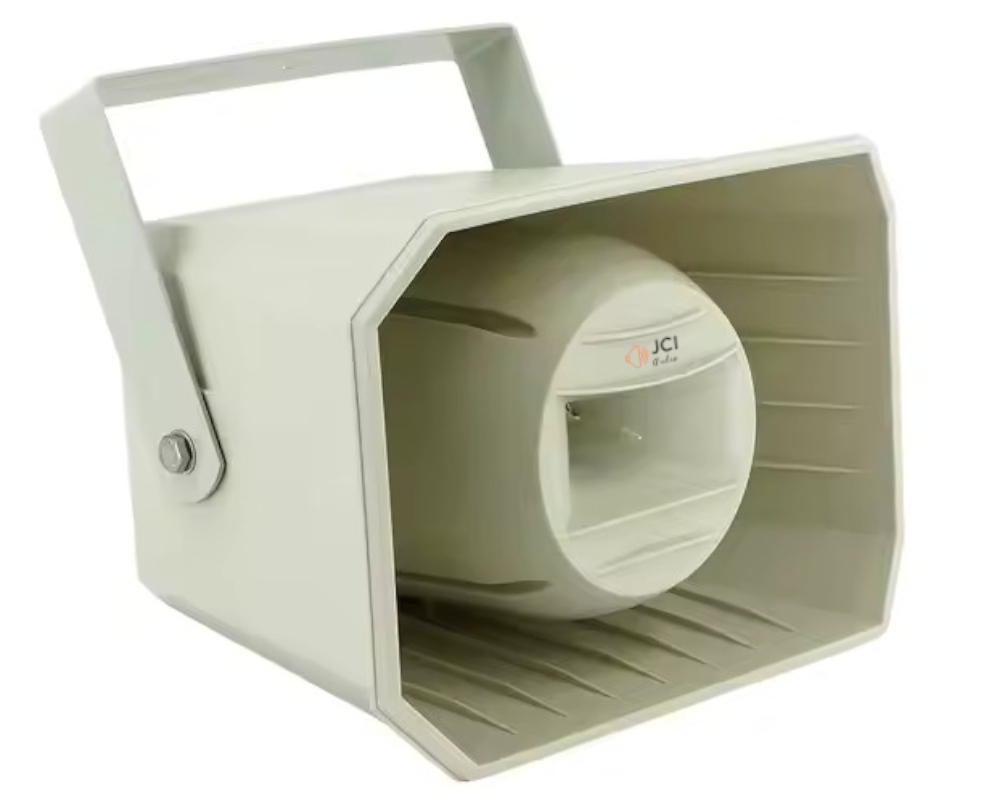

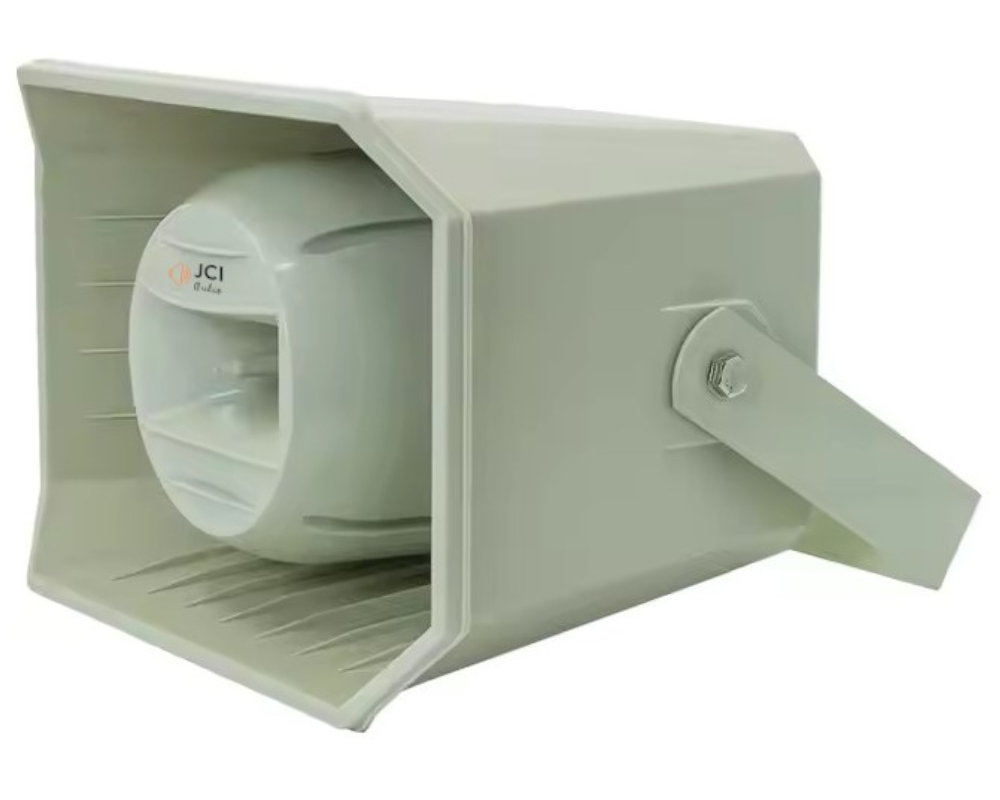

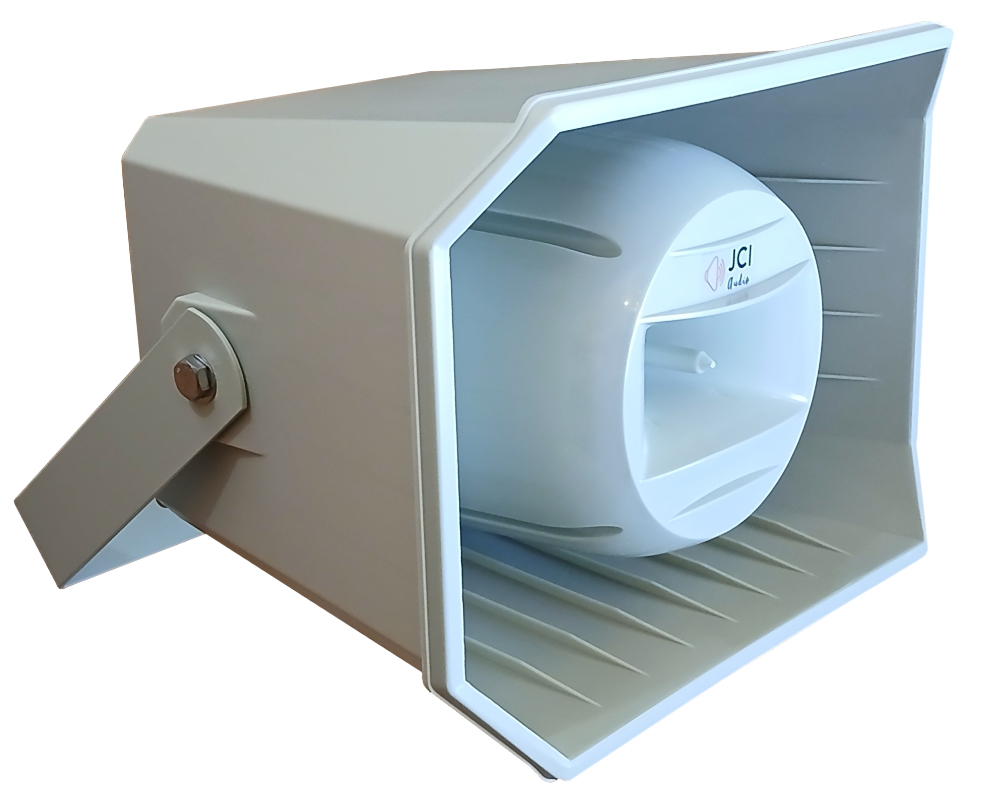

JHS-50
50W Outdoor Music Horn Speaker (Selectable power: 50W / 25W / 12.5W / 9W / 4.5W / 3.5W at 100V line)
Description
The JHS-50 is a weatherproof outdoor horn speaker designed for public address and background music systems in open or semi-open areas. Delivering high efficiency and clear sound projection, it ensures reliable performance for paging and announcements in schools, factories, and public facilities. Its UV-protected ABS enclosure and stainless steel bracket provide long-term durability under harsh weather conditions.
Key Features:
• Designed for commercial public address (PA) and
background music systems.
• Ideal for outdoor installations such as schools, factories, hotels,
parks, and public spaces.
• High-efficiency weatherproof horn with clear sound projection
for speech and music.
• Multiple power taps selectable at 100V line: 3.5W to 50W.
• IP66 waterproof rating ensures reliable performance under harsh outdoor conditions.
• UV-protected ABS housing with stainless steel mounting bracket for long-term durability.
• Supports 100V / 70V line or 8Ω input for flexible system integration.
• Easy and quick installation with included adjustable stainless bracket.
Specifications:
| Model | JHS-50 |
|---|---|
| Description | 50W Outdoor Music Horn Speaker |
| Rated Power Output | 50W / 25W / 12.5W / 9W / 4.5W / 3.5W |
| Line Input | 100V / 70V / 8Ω |
| Frequency Response | 90Hz – 20kHz |
| SPL(@1W/m) | 99dB |
| Power Selection Method | Multiple power taps are available via color-coded wires: 100V: red and yellow: 50W; yellow and green: 25W; green and white: 12.5W; red and green: 9W; yellow and white: 4.5W; red and white: 3.5W Low Impedance: red and black: 8Ω |
| Speaker Components | 6.5" woofer + 1" tweeter |
| IP Rating | IP66 |
| Connector | Waterproof speaker cable |
| Dimensions (W × D × H) | 362 × 310 × 252 mm |
| Material and color | UV-protected ABS enclosure, stainless steel bracket in light grey (smoke white tone). |
| Mounting | Quick installation via included stainless bracket |
| Net Weight | 3.9 kg |
